iTroll M456 Fit Kit
Fits Mercury 40, 50, & 60 HP EFI motors.

IMPORTANT INFORMATION!
1. For motors with "T Handle" shift & throttle & BIG TILLER control.
This kit DOES NOT fit regular tiller and jet drive motors.

2. For engine serial numbers 1C050252 and later.

Installation instructions:




You can make a positive ID of the motors that the M456 fit kit supports by looking for the following:

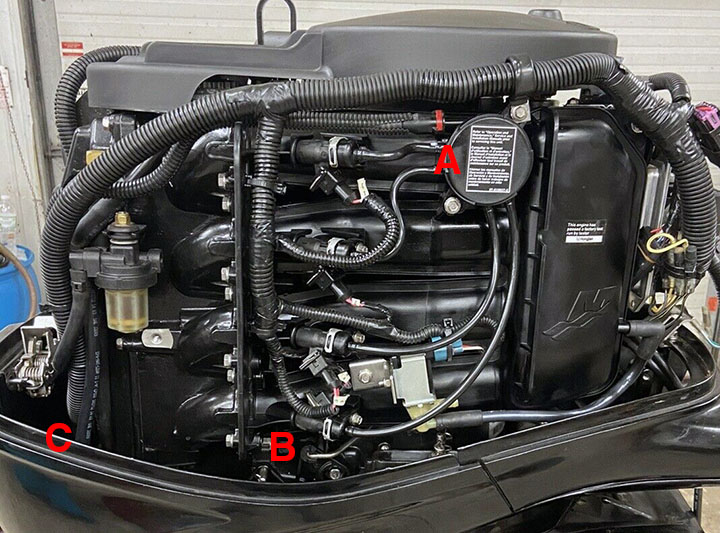

Motor Features:
A) Round part of intake manifold
B) Throttle cams (see next picture
C) Nut on motor for iTroll servo attachment (see last picture)

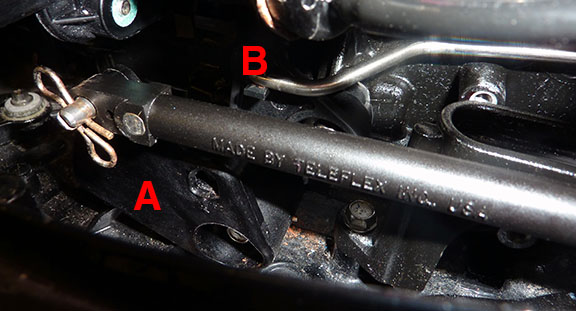

A) Throttle cam
B) Throttle rod

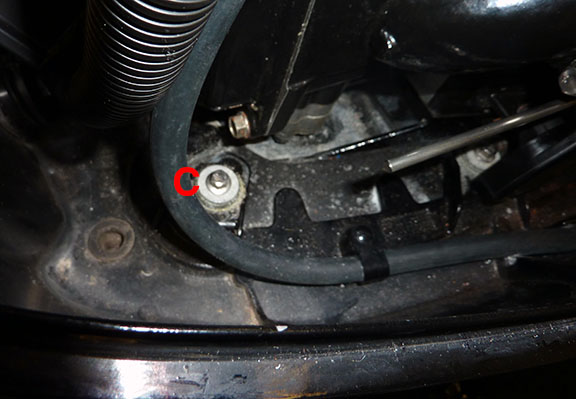

C) Nut used to secure servo bracket
